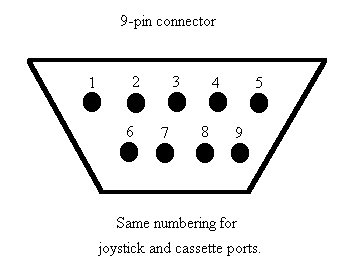

Joystick Pinouts

# I/O Use
2 > Test joystick 2
3 < Up
4 < Fire button pressed
5 < Left
6 not used
7 > Test joystick
8 < Down
9 < Right
